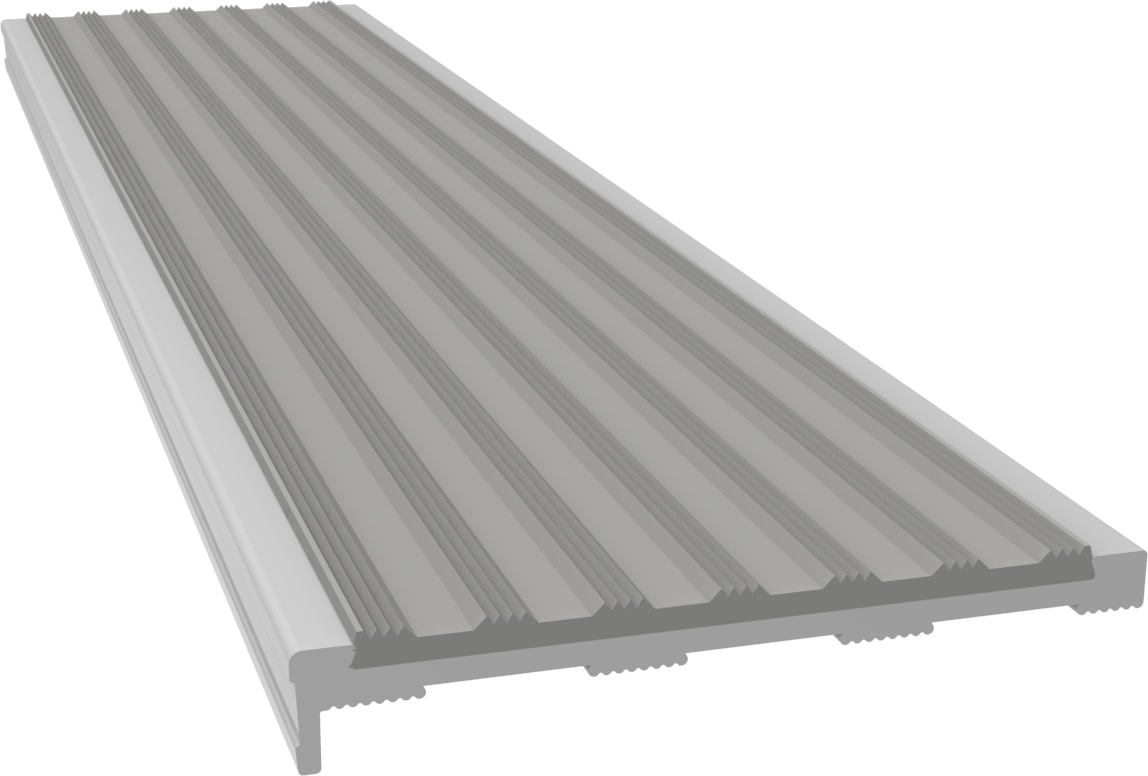

Aluminium Stair Nosing - C Series Clear Anodised with Light Grey Extruded Vinyl Internal/Dry Rated Insert

Aluminium Stair Nosing - C Series CLEAR anodised with BLACK external rated insert - Safety Stride
Sold out

    Add to Cart - online ordering of 1m lengths:

  • Price includes GST
  • Price excludes shipping - shipping is calculated at checkout based on your total quantity and destination
  • Price shown is for 1 lineal metre of pre-cut stair nosing
  • For all custom cut to length jobs - please use the orange 'request a quote now' button on this page

  What's included in the box:

  • Silver anodised aluminium stair nosing extrusion - 100% Australian-made
  • Vinyl insert
  • High performance adhesive tape (for fixing insert to channel to hide the screws)
  • 3 x countersunk holes pre-drilled in aluminium extrusion
  • Stainless steel screws & nylon masonry plugs
  • Installation instructions

Need it cut to size?

  • Minimum quantity for cut to size orders: 10 lineal metres
  • 3.3m maximum continuous length - please contact us for anything longer
  • Australia-wide delivery
  • The C Series stair nosing is specially designed for flush-mount installations
  • The insert consists of a very long lasting rubberised vinyl extrusion which is easy to clean and compliments timber, carpet, vinyl, LVT and rubber flooring
  • The aluminium is clear anodised / light silver
  • Installed with a combination of adhesive and screws, this product offers trouble free performance in most internal environments
  • Applications include residential apartment blocks, schools, universities and offices
HOW TO SPECIFY
Product shall be Safety Stride C SERIES stair nosing, CLEAR anodised aluminium extrusion, LIGHT GREY extruded vinyl insert, P3 rated for internal/dry use. Fixing method: chemical and mechanical - all fixings shall be concealed.
Distributed by Safety Stride Pty Ltd - PH (02) 8311 3878 sales@safetystride.com.au | safetystride.com.au
RANGE C SERIES
PRODUCT CODE C-CLR-EXV-LGY
TYPE FLUSH MOUNT
SUITABILITY INTERNAL DRY ONLY
NOSE DESIGN SQUARE
OVERALL PROFILE DIMENSIONS 70x10x5mm
ALUMINIUM FINISH CLEAR ANODISED
ALUMINIUM RECYCLABLE YES
ALUMINIUM MANUFACTURED IN AUSTRALIA
INSERT TYPE EXTRUDED VINYL
INSERT SLIP RESISTANCE P3
INSERT COLOUR LIGHT GREY
INSERT WIDTH 60mm
FIXING METHOD GLUE & SCREW
FIXING APPEARANCE CONCEALED FIXINGS
  • Designed for flush mount installation in new stair construction as well as during the installation of new floorcoverings on existing stairs
  • Not recommended for fire-isolated stairs (please see S-CLR-EXA-BLK)
  • Overall dimensions: 70x10x5mm
  • Install into a 5mm deep recess or surface mount and bring new 5mm thick flooring up to the back edge of the profile
  • CLEAR anodised aluminium profile and LIGHT GREY insert provide contrast over light coloured substrates and floor coverings as per AS 1428.1:2021
  • Supplied with wear-resistant internal rated insert
  • Concealed fixings - first the extrusion is fixed to the substrate by way of screws and adhesive and then the insert is adhered to the extrusion with provided high performance PSA tape
  • Applications include office and residential buildings, schools, universities, hospitals, factories and houses
  • UV stabilised materials for a long trouble-free service life
  • Manufactured in Australia
  • Anodised aluminium stair nosing extrusion
  • Extruded vinyl insert (supplied on a roll)
  • Self-adhesive tape for fixing insert to channel (supplied on a roll)
