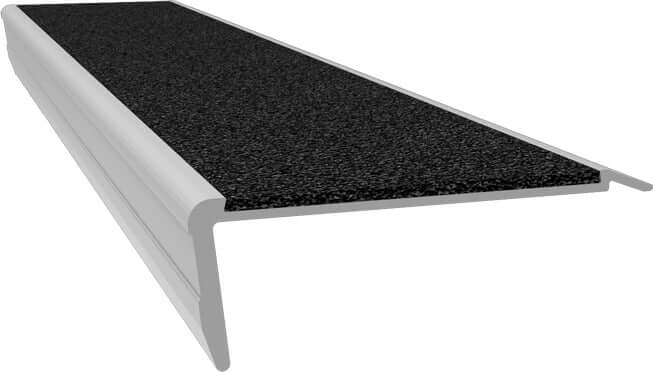

Aluminium Stair Nosing - G Series Clear Anodised with Black TRAKA External Rated Insert

Aluminium Stair Nosing - C Series CLEAR anodised with BLACK external rated insert - Safety Stride
  • $50 ex. GST per lineal metre, cut and drilled
  • Quantity and reseller discounts apply
  • Minimum order quantity: 10 lineal metres
  • Australia-wide delivery
  • Please note: due to the front return exceeding 10mm, this profile is not compliant to the current AS1428.1
  • The G Series stair nosing is specially designed for surface-mount installations
  • TRAKA external rated insert consists of a highly non-slip carborundum grit surface which has outstanding wear resistance for use in even the highest traffic situations
  • The aluminium is clear anodised / light silver
  • Installed with a combination of adhesive and screws, this product offers trouble free performance in most internal & external environments*
  • Applications include main feature and egress stairs in schools, universtities, commercial buildings, railway stations, stadiums and anywhere else thousands of pedestrians will travel up and down each day
  • *Due to the abrasive finish of the insert, the cleaning method should also be considered. For internal carpeted stairs or areas which are frequently mopped, the S Series with aluminium or vinyl inserts is more suitable. Please contact us for recommendations.
  • Designed for surface mount / retro-fit applications on existing stair treads
  • Suitable for use on square edged stairs, pencil edge as well as larger bull nosed edges
  • Please note: due to the front return exceeding 10mm, this profile is not compliant to the current AS1428.1:2021
  • Concealed fixings - first the extrusion is fixed to the substrate by way of screws and adhesive and then the insert is adhered to the extrusion with included high performance PSA tape
  • Manufactured in Australia
HOW TO SPECIFY
Product shall be Safety Stride G SERIES stair nosing, CLEAR anodised aluminium extrusion, BLACK abrasive insert, P5 rated for extremely high traffic internal/external, dry/wet use. Fixing method: chemical and mechanical - all fixings shall be concealed.
Distributed by Safety Stride Pty Ltd - PH (02) 8311 3878 sales@safetystride.com.au | safetystride.com.au
RANGE
G SERIES
PRODUCT CODE
G-CLR-TKA-BLK
TYPE
SURFACE MOUNT / RETRO FIT
SUITABILITY
INTERNAL / EXTERNAL, WET / DRY
NOSE DESIGN
SQUARE
OVERALL PROFILE DIMENSIONS
75 x 30mm
ALUMINIUM FINISH
CLEAR ANODISED
ALUMINIUM RECYCLABLE
YES
ALUMINIUM MANUFACTURED IN
AUSTRALIA
INSERT TYPE
ABRASIVE / CARBORUNDUM
WET PENDULUM SLIP RESISTANCE
INSERT COLOUR
BLACK
INSERT WIDTH
60mm
FIXING METHOD
GLUE & SCREW
FIXING APPEARANCE
CONCEALED FIXINGS
  • G Series Australian-made anodised aluminium stair nosing extrusion
  • TRAKA 2mm thick abrasive solid/rigid insert - supplied in lengths with PSA tape for fixing to extrusion channel
  • If cut to size is specified - aluminium will be supplied cut to your custom sizes
  • If pre-drill countersunk holes is specified; aluminium will be supplied with countersunk holes pre-drilled and will also come with the appropriate fixings for the nominated substrate type
  • If ship to my location is specified; your order will be expertly packaged to ensure goods will arrive in perfect condition Australia-wide
